HVAC Systems Design


ARGOS Engineering has gain many years of experience in design and development on HVAC Systems for railway vehicles. In 2001 we have been commisioned for the re-design of the HVAC of Tram Sirio Athens of Ansaldobreda by re-positionning of all the components (formerly fitted on the vehicle roof) inside a stand-alone module; this experience brought Argos to be commissioned for all the activities linked to the design and lay-out definition of the Chiller air conditioning plant inside the vehicle with Type and Functional Tests in Climatic Chamber on several vehicles of Tram Sirio Fleet.



Tram Sirio Athens - HVAC System Roof Module

Tram Sirio Athens – HVAC System Roof Module



Tram Sirio Athens - HVAC System Roof Module handling

Tram Sirio Athens – HVAC System Roof Module handling



Tram Sirio Athens - HVAC System Assembly without carters

Tram Sirio Athens – HVAC System Assembly without carters



Tram Sirio Athens - HVAC System Detail

Tram Sirio Athens – HVAC System Detail



Starting from 2003 Argos has developped the plant engineerization on variuos Sirio vehicles like Naples, Bergamo, Guthenburg: for the latter, we have managed design and prototype of Driver’s Cab HVAC with Climatic Chamber Tests.

Tram Sirio - Air distribution in the passenger coaches

Tram Sirio – Air distribution in the passenger coaches

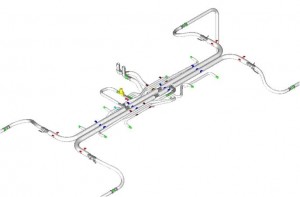

Tram Sirio - Piping for refrigerating fluid distribution

Tram Sirio – Piping for refrigerating fluid distribution



Tram Sirio - In-coach distribution system

Tram Sirio – In-coach distribution system



Tram Sirio - In-coach distribution system with interior lining integration

Tram Sirio – In-coach distribution system with interior lining integration



Tram Sirio Guthenburg - Driver's Cab HVAC System

Tram Sirio Guthenburg – Driver’s Cab HVAC System





ARGOS Engineering was also committed by Ansaldobreda for the design and development of the distribution system of air conditionned for vehicles Metro Los Angeles, and for the 3D modelling of air ducts on V250 complete with CFD analysis.



Metro Los Angeles - Air distribution inside the vehicle

Metro Los Angeles – Air distribution inside the vehicle



Metro Los Angeles - Air distribution inside the vehicle

Metro Los Angeles – Air distribution inside the vehicle



V250 - Air distribution inside the vehicle

V250 – Air distribution inside the vehicle
